Vulcan Cladding - Vertical Grain
Abodo's premium weatherboard product made using FSC® certified New Zealand plantation timber, thermally modified for superior beauty and durability.
A renewable alternative to Western Red Cedar, Abodo's Vulcan timber is verified to store more carbon than is used in its production.
The thermal modification process used in its production results in a stable timber with low moisture content - meaning it won’t warp, cup or bleed. This also makes Vulcan Cladding suitable for coating in dark colours, even in warm climates.
Create clean lines using various profiles, including vertical shiplap and bevel back. With a variety of coatings and finishes, Vulcan is perfect for bespoke architectural aesthetics and applications.
As the thermal modification process is preservative and chemical free, Vulcan timber is ideal interior applications and joinery.
Additionally, Vulcan is manufactured with a patented process resulting in an engineered vertical grain orientation that reduces cracking and enables stable weathering long term.
Environmental Product Declaration and Declare Red List Free certified, each square metre of Vulcan Cladding stores 7.56kg+ of carbon.
Grade + Appearance
Vulcan Cladding is now available in two ranges.
The Architectural Series is our premium cladding, ideal for architectural projects where a largely clear aesthetic is desired. This series includes a wider range of profiles, colours and finishes.

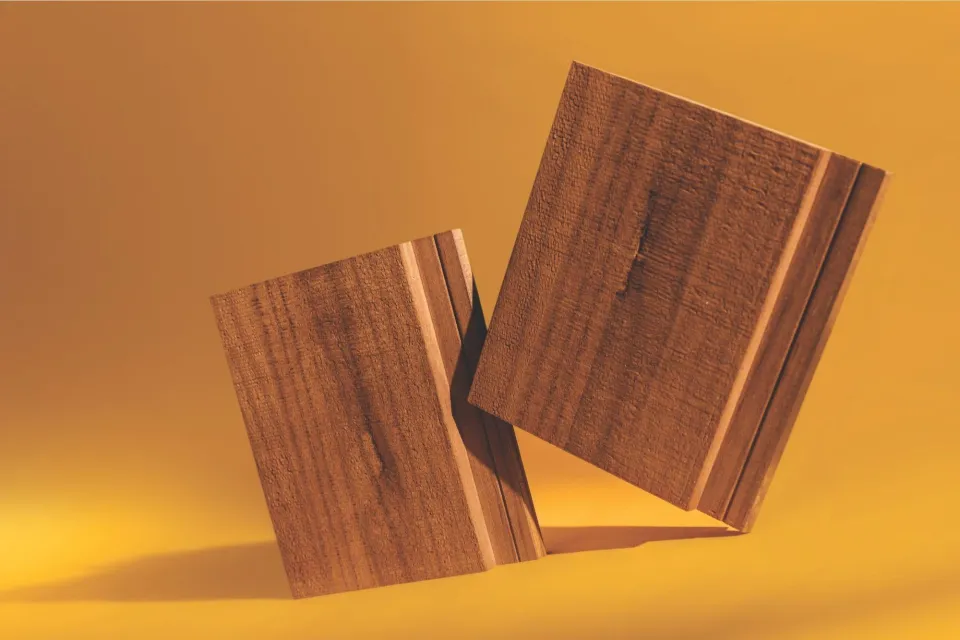

Our new Standard Series includes some knots and natural features, and is available in a select range of colours and profiles.

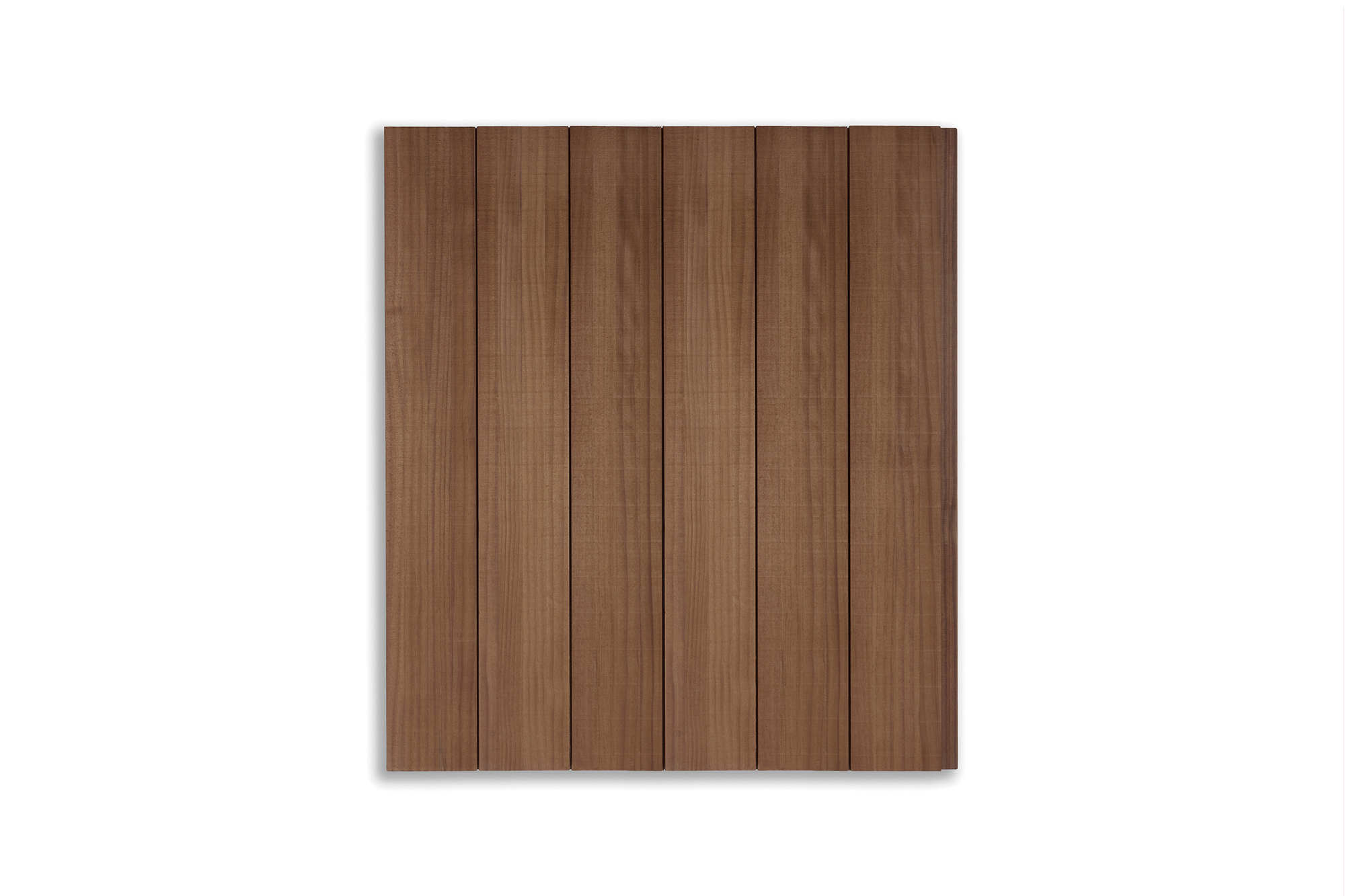

Architectural Series / a mainly clear grade, that allows limited natural features only.

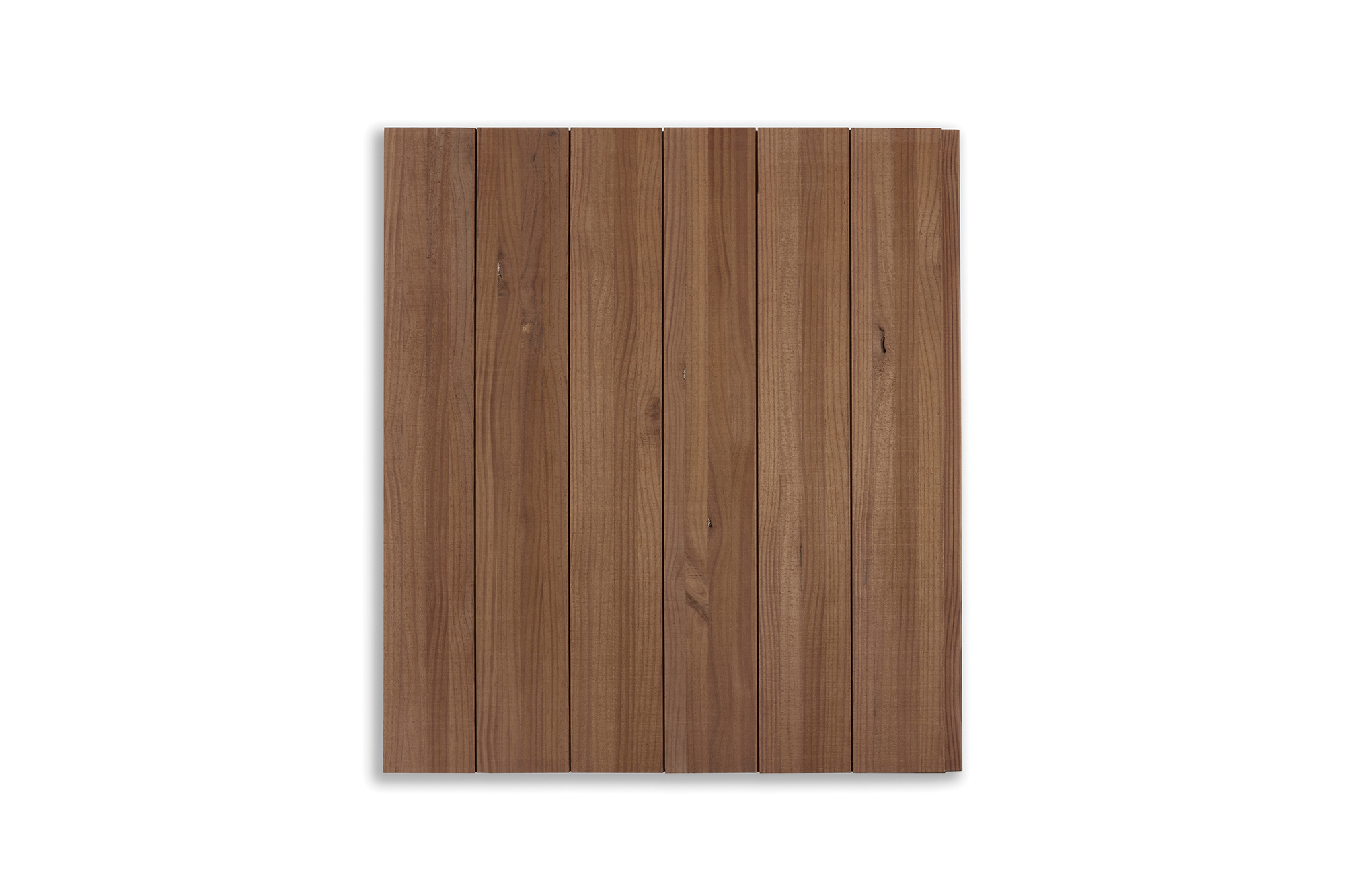

Standard Series / has a touch of character from the timber’s natural features.
Finish + Colour
Choose brushed or bandsawn finishes, to customise your design. Brushed brings additional texture.
Click on each bandsawn colour swatch to see how the colours weather over time.
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.

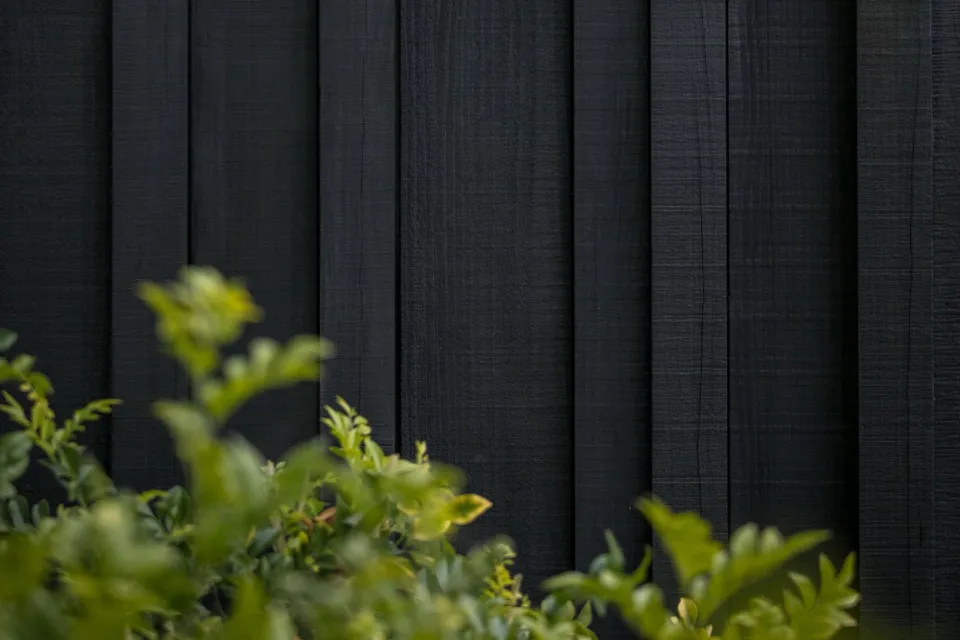

Vulcan in Nero, bandsawn + brushed
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.
Vulcan in Nero, Bandsawn Finish
Vulcan in Nero, Brushed Finish
Vulcan in Ebony, bandsawn + brushed
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.
Vulcan in Ebony, Bandsawn Finish
Vulcan in Ebony, Brushed Finish
Vulcan in Graphite, bandsawn + brushed
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.
Vulcan in Graphite, Bandsawn Finish
Vulcan in Graphite, Brushed Finish
Vulcan in Walnut, bandsawn + brushed
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.
Vulcan in Walnut, Bandsawn Finish
Vulcan in Walnut, Brushed Finish
Vulcan in Teak, bandsawn + brushed
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.
Vulcan in Teak, Bandsawn Finish
Vulcan in Teak, Brushed Finish
Vulcan in Iron Vitriol, bandsawn + brushed
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.
Vulcan in Iron Vitriol, Bandsawn Finish
Vulcan in Iron Vitriol, Brushed Finish
Vulcan in Natural, bandsawn + brushed
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.
Vulcan in Natural, Bandsawn Finish
Vulcan in Natural, Brushed Finish
This video shows Vulcan in Natural, bandsawn + brushed Finish weathering over a 12 month period.
Vulcan in Straw, bandsawn + brushed
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.
Vulcan in Straw, Bandsawn Finish
Vulcan in Straw, Brushed Finish
Vulcan in Patina, bandsawn + brushed
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.
Vulcan in Patina, Bandsawn Finish
Vulcan in Patina, Brushed Finish
Vulcan in White, bandsawn + brushed
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.
Vulcan in White, Bandsawn Finish
Vulcan in White, Brushed Finish
This video shows Vulcan in White, bandsawn + brushed Finish weathering over a 12 month period.
Vulcan in Sioo:x (Weathered), bandsawn
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.
Vulcan in Sioo:x, Bandsawn Finish
Vulcan in Nero, bandsawn only
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.
Vulcan in Nero, Bandsawn Finish
Vulcan in Ebony, bandsawn only
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.
Vulcan in Ebony, Bandsawn Finish
Vulcan in Graphite, bandsawn only
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.
Vulcan in Graphite, Bandsawn Finish
Vulcan in Walnut, bandsawn only
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.
Vulcan in Walnut, Bandsawn Finish
Vulcan in Teak, bandsawn only
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.
Vulcan in Teak, Bandsawn Finish
Vulcan in Natural, bandsawn only
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.
Vulcan in Natural, Bandsawn Finish
Vulcan in Straw, bandsawn only
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.
Vulcan in Straw, Bandsawn Finish
Vulcan in Patina, bandsawn only
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.
Vulcan in Patina, Bandsawn Finish
Vulcan in White, bandsawn only
* Colour variation may occur due to variation in the natural substrate. Colour may change/fade as part of the weathering process.
Vulcan in White, Bandsawn Finish
Profile + Size
Our profiles vary depending on the range.
The Architectural Series offers a range of profiles and sizes, giving
designers almost unlimited options to unleash their creativity.
This includes Abodo’s popular hidden fix system.
The Standard Series brings one hidden fix weatherboard profile that can be installed vertically or horizontally.

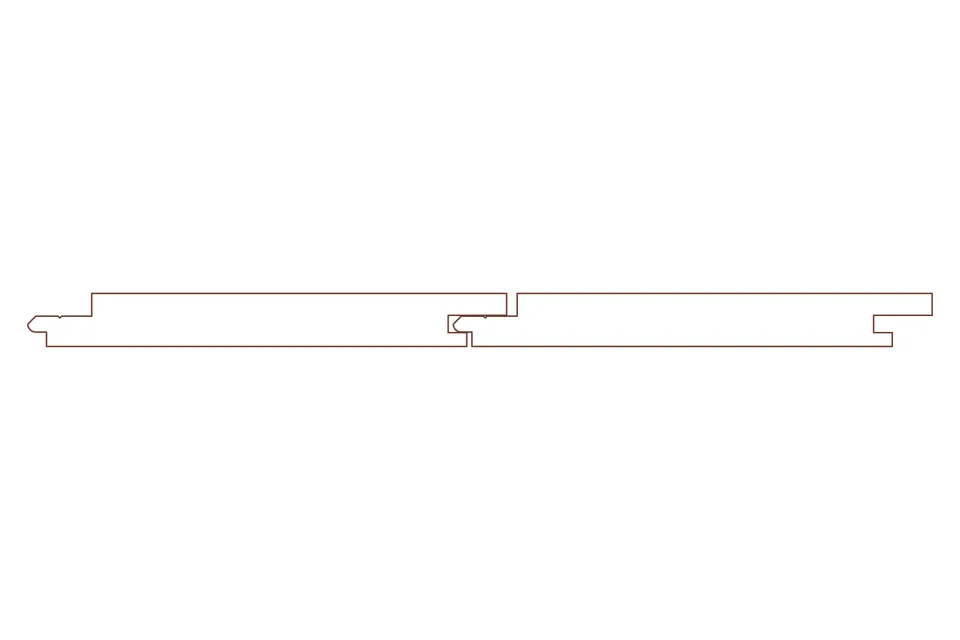

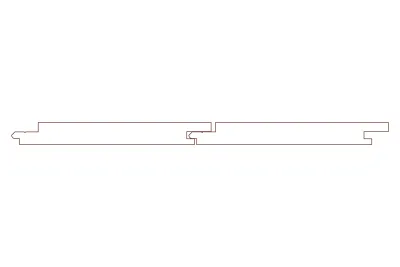

WB12 180x20
Vertical only

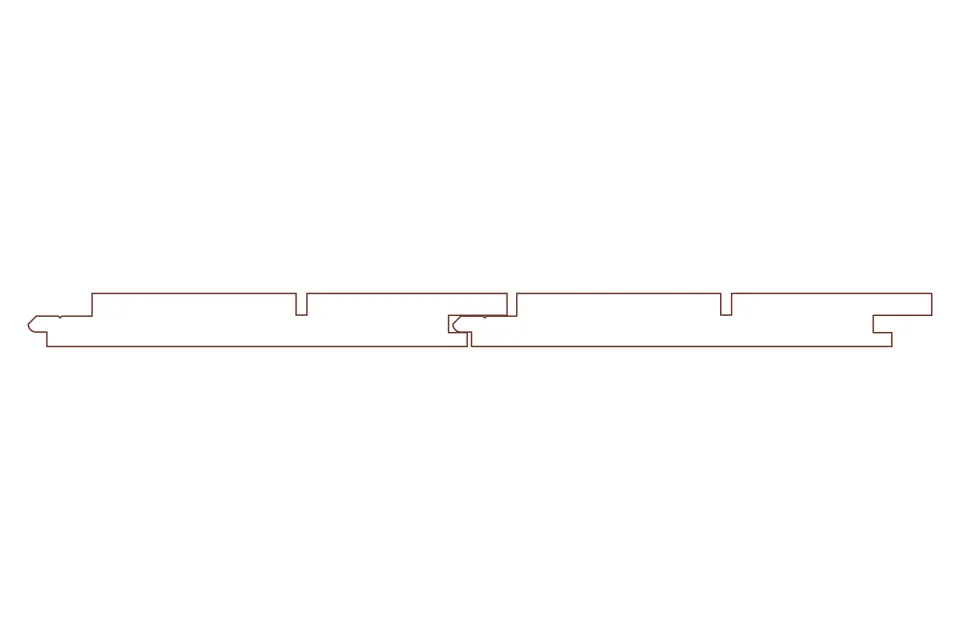

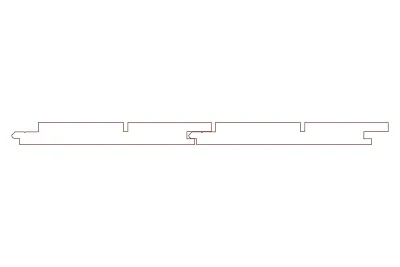

Fineline WB12F 180x20
Vertical only

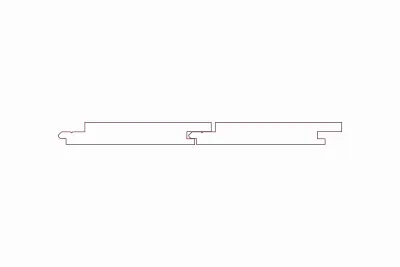

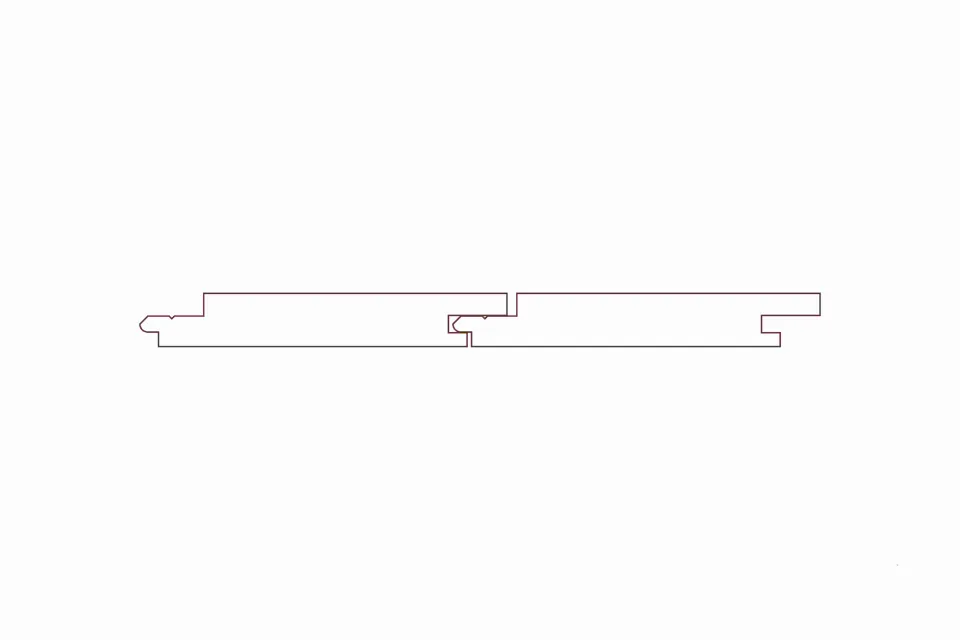

WB12 138x20
Vertical only
WB12 90x60
Vertical only
WB12 90x40
Vertical only

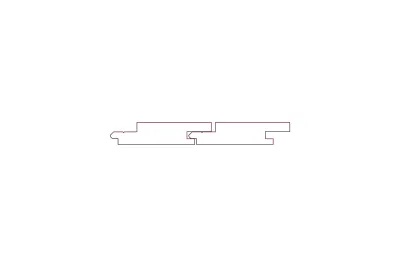

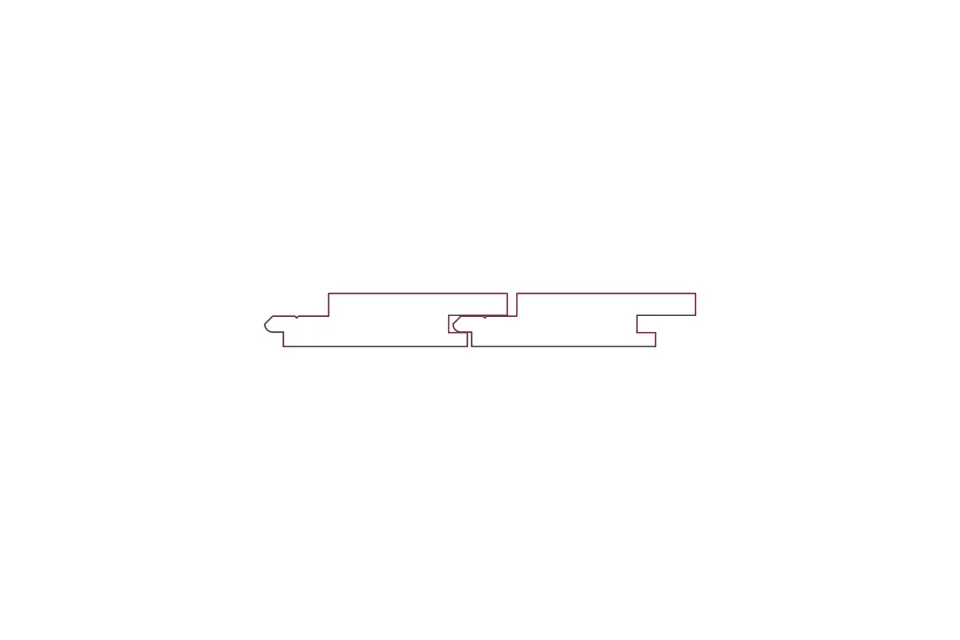

WB12 90x20
Vertical only
WB10 180x20
Vertical & Horizontal
WB10 138x20
Vertical & Horizontal
Bevelback AW62 180x20
Horizontal only
WB18 135x18
Vertical & Horizontal
Thermally modified timber
Vulcan timbers are treated with heat and steam rather than chemicals, which means the product is ‘pre-shrunk’ and will be more stable in service.
Natural Stability
Grown trees experience resistance (like wind for example) perpendicular to the grain, so it makes sense to produce wood products which are also cut perpendicular to the grain. Abodo Vulcan Cladding is vertical grain, which means weatherboards have greater stability and less surface cracking.
Natural Durability
This product is naturally durable, and contains no wood preservatives. Just as nature intended.
Climate credentials
Carbon Storage
Each square metre of Abodo's Vulcan solid timber is proven to store 7.56kg+ of carbon, more than twice the carbon emitted during the manufacturing process. This means carbon is essentially locked in the wood during its useful life.
Forest Stewardship Council® (FSC®) Certified
A guarantee that forest products come from responsibly managed sources, including forest management and chain of custody.
Declare Certified
Declare certified Red List Free by the Living Futures Institute, the leading label in transparency for building products.
Timber details
CodeMark Certified
Certified for guaranteed acceptance with New Zealand Building Authorities and conformance with the New Zealand Building Code.
Built to Last Warranty
Vulcan Cladding is covered by a 15 year Built to Last Warranty.
Vertical or Horizontal Cladding
Vulcan Cladding can be used in vertical or horizontal applications. Within the Architectural Series, our WB10 profile is a secret fix profile that can be used to create a vertical shiplap look.
Additional Information
FAQs
What’s the difference between the current Architectural Series and the new Standard Series?
The Architectural series is our premium cladding product, crafted
from Clear 1 grade feed stock timber to deliver a clean, high-end
aesthetic.
The Standard Series is made from Clear 2 grade feed stock timber and
brings a light natural character to the timber’s appearance – ideal for
mid-range builds where premium clear lengths are not always required.
The
Standard Series is also available in a limited range of colours and
profiles. Accordingly, the Standard Series is available at a lower, more
accessible price.
Read more here
Where can I buy Vulcan Cladding?
Please contact your local timber merchant, such as Akarana Timbers, BuildLink, Bunnings, Carters, ITM, Mitre10 or PlaceMakers.
How much does Vulcan Cladding cost?
Please get in touch with our Sales Support Team on +64 (09) 249 0100 for indicative timber pricing.
Are accessories available for the timber cladding?
Yes. For most profiles, we offer various corner, flashing, fascia and finishing profiles to match the cladding boards. Using these accessories will ensure optimal performance of the cladding system in service.
How do I install and fix Abodo timber cladding?
Cladding is bit more technical than decking, so always consult with a professional before starting your project. A Licenced Building Practitioner is required for install.
Abodo cladding may be face fixed or secret fixed depending on the profile shape. Stainless steel ring shank nails or self-drilling stainless steel countersunk screws should be used in all cases. Generally we recommend to fix boards onto a drained cavity system to allow good airflow and optimum weather protection.
All profiles requires a minimum 2mm expansion gap to be left between boards, you need to ensure all cut ends must are resealed with penetrating oil or sealer. Boards should be coated all sides and re-coated regularly as required thereafter.
Refer to the Resources page for more details including installation manual and drawings.
How do I maintain Abodo timber cladding?
Please see our Maintenance Guidelines for more information.
